Ranger

£1000.00

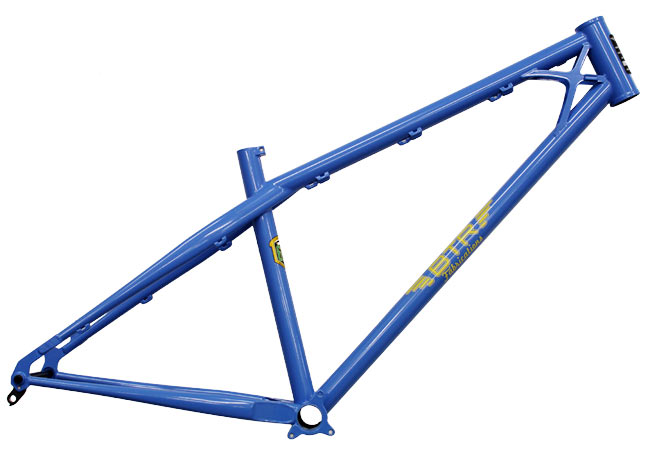

When we headed to Scotland for the inaugural Dudes of Hazzard enduro race, we thought it a good idea to make something a little more ‘all round’ than the Belter… So we created the Ranger to take us up hill, down dale, through the jumps and probably to the pub after. This frame is made to take absolutely everything you can throw at it, in its stride.

Clear

Custom Head Badge Text (11 characters max; A-Z, 0-9):

SKU: Ranger Category: Tags: , , ,
Description

Product Description

Features:

  • Available for 26″, 650B, or 29″ wheels
  • Available in 5 sizes
  • Reynolds 853 and 631 front end, Dedacciai stays
  • Clear lacquer finish with integrated graphics
  • 120mm fork travel (26″ & 650B)
  • 100mm fork travel (29″)
  • Dropper post cable routing

BTR can supply any components you need with your frame, or even a complete bike!

Need to know anything else? Check our FAQ, or Contact us and we’ll be happy to help!

Press
Geometry

Ranger 2015 Geometry Diagram

26" RANGERREACH
(A)
STACK
(B)
ST
(C)
EFF. TT
(D)
BB DROP
(E)
EFF. CS
(F)
WB
(G)
HA
(H)
SA
(I)
HT LENGTH
(J)
HEADSET STACK
(K)
AXLE - CROWN
(L)
OFFSET
(M)
XS380603.09380541.60404101109.1464751301250440
S400603.09400561.60404101129.1464751301250440
M425621.06430591.41404151167.9164751501250440
L445621.06450611.41404151187.9164751501250440
XL470621.06464636.41404151212.9164751501250440

650B RANGERREACH
(A)
STACK
(B)
ST
(C)
EFF. TT
(D)
BB DROP
(E)
EFF. CS
(F)
WB
(G)
HA
(H)
SA
(I)
HT LENGTH
(J)
HEADSET STACK
(K)
AXLE - CROWN
(L)
OFFSET
(M)
S400629.01400568.54554101130.3264.5751301251442
M425629.01430593.54554151160.3264.5751301251442
L445647.07450618.38554151188.9364.5751501251442
XL470647.07464643.38554151213.9364.5751501251442

29" RANGERREACH
(A)
STACK
(B)
ST
(C)
EFF. TT
(D)
BB DROP
(E)
EFF. CS
(F)
WB
(G)
HA
(H)
SA
(I)
HT LENGTH
(J)
HEADSET STACK
(K)
AXLE - CROWN
(L)
OFFSET
(M)
S400642.36400572.12734311152.7765751301251051
M425642.36430597.12734311177.7765751301251051
L445642.36450617.12734311197.7765751301251051
XL470660.49464646.98734311231.2265751501251051

Optional Features Specifications
  • 44mm head tube (requires external lower headset cup)
  • 31.6mm seat tube (34.9mm clamp)
  • 142 x 12mm dropouts
  • 160mm post rear brake mount (Max 205mm)
  • 73mm threaded BB
  • Approx. 2.5kg (Size M, all axles, fasteners etc)
  • Max. 36t chainring

BTR can supply any components you need with your frame, or even a complete bike!

Sizing

The following size recommendations are a guideline only- contact us and we’ll be more than happy to discuss your needs!

Frame SizeMin. Rider HeightMax. Rider Height
Custom-5' (152cm)
Extra Small5′ (152cm)5′ 3″ (160cm)
Small5′ 3″ (160cm)5′ 7″ (170cm)
Medium5′ 7″ (170cm)5′ 10″ (178cm)
Large5′ 10″ (178cm)6′ 1″ (188cm)
Extra Large6′ 1″ (188cm)6' 4" (193cm)
Custom6' 4" (193cm)-
